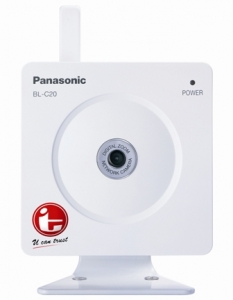

PANASONIC
BL - C20CE Indoor
Features:
- Wireless LAN (802.llb/802.llg)
- 10x Digital Zoom Function
- Multi-camera Capability
- Motion Detection Function
- Recording Program (Included)
- Color Night View Mode (4.00 lux)
- Cell Phone Monitoring
- Buffered Images
Server :
Image compression :
- JPEG (Motion JPEG)
Video resolution :
- 640 x 480, 320 x 240 (default), 160 x 120
Image quality :
- JPEG (favor clarity, standard, favor motion)
Frame rate :
- Max. 7.5 frames/sec (640 x 480) Max. 15 frames/sec (320 x 240, 160 x 120)
Security :
- User ID/password
Supported protocols:
- TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP,ICMP, POP3, NTP, UPnPTM
User access limit :
- Max. 20 simultaneous accesses
Buffered images :
- Approx. 250 images (320 x 240) •standard image quality •with time display
Image transfer method :
- SMTP, FTP
Image buffer/transfer triggers :
- Alarm or motion detection
Network Camera :
Zoom : 10x digital zoom (by area)
Viewing angle : 53° horizontal 41° vertical
Sensor type : 1/4 inch CMOS sensor, approx. 320,000 pixels
Lens focal point : Fixed (focal range: 0.3 m to ∞)
Lens brightness : F2.8
Required light intensity : 10 to 10,000 lux (in color night view mode : 4 to 10,000 lux)
Audio :
Not Available
Wireless :
Standards : IEEE 802.11b/g
Antenna : Diversity
Number of channel : 11ch. (USA), 13ch. (Others)
Transmission speed : Up to 54 Mbps.
Security : WEP (64/128/152 bit), SSID
Terminal:
Network interface : Ethernet (10Base-T/100Base-TX)
General :
Operating temperature : 5°C to 40°C ( 41°F to 104°F)
Operating humidity : 20% to 80% (no condensation)
Dimensions (H x W x D) :
- 85 x85 x35.5 mm (3 3/8 x 3 3/8 x 1 3/8 inches)
Weight (only the unit) : 165 g (0.36 lb)
Power supply (E) : Input: 220-240 V AC, output: 9 V DC
Power supply (CE) : Input: 100-240 V AC, output: 9 V DC
Power supply(US) : Input: 120 V AC, output: 9 V DC
Consumption : 4.6 W
- Wireless LAN (802.llb/802.llg)
- 10x Digital Zoom Function
- Multi-camera Capability
- Motion Detection Function
- Recording Program (Included)
- Color Night View Mode (4.00 lux)
- Cell Phone Monitoring
- Buffered Images
Server :
Image compression :
- JPEG (Motion JPEG)
Video resolution :
- 640 x 480, 320 x 240 (default), 160 x 120
Image quality :
- JPEG (favor clarity, standard, favor motion)
Frame rate :
- Max. 7.5 frames/sec (640 x 480) Max. 15 frames/sec (320 x 240, 160 x 120)
Security :
- User ID/password
Supported protocols:
- TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP,ICMP, POP3, NTP, UPnPTM
User access limit :
- Max. 20 simultaneous accesses
Buffered images :
- Approx. 250 images (320 x 240) •standard image quality •with time display
Image transfer method :
- SMTP, FTP
Image buffer/transfer triggers :
- Alarm or motion detection
Network Camera :
Zoom : 10x digital zoom (by area)
Viewing angle : 53° horizontal 41° vertical
Sensor type : 1/4 inch CMOS sensor, approx. 320,000 pixels
Lens focal point : Fixed (focal range: 0.3 m to ∞)
Lens brightness : F2.8
Required light intensity : 10 to 10,000 lux (in color night view mode : 4 to 10,000 lux)
Audio :
Not Available
Wireless :
Standards : IEEE 802.11b/g
Antenna : Diversity
Number of channel : 11ch. (USA), 13ch. (Others)
Transmission speed : Up to 54 Mbps.
Security : WEP (64/128/152 bit), SSID
Terminal:
Network interface : Ethernet (10Base-T/100Base-TX)
General :
Operating temperature : 5°C to 40°C ( 41°F to 104°F)
Operating humidity : 20% to 80% (no condensation)
Dimensions (H x W x D) :
- 85 x85 x35.5 mm (3 3/8 x 3 3/8 x 1 3/8 inches)
Weight (only the unit) : 165 g (0.36 lb)
Power supply (E) : Input: 220-240 V AC, output: 9 V DC
Power supply (CE) : Input: 100-240 V AC, output: 9 V DC
Power supply(US) : Input: 120 V AC, output: 9 V DC
Consumption : 4.6 W
